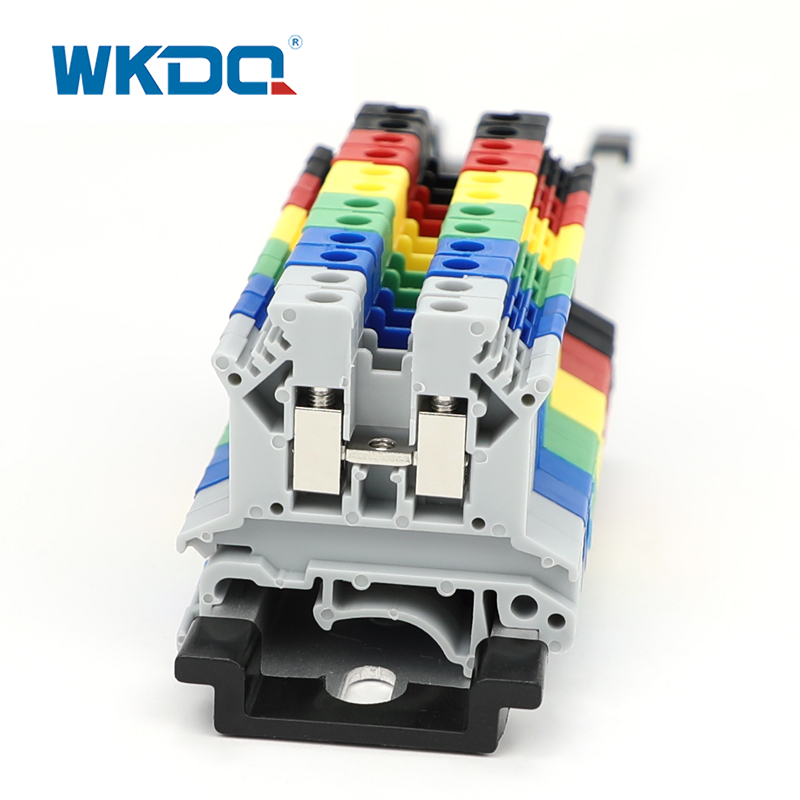

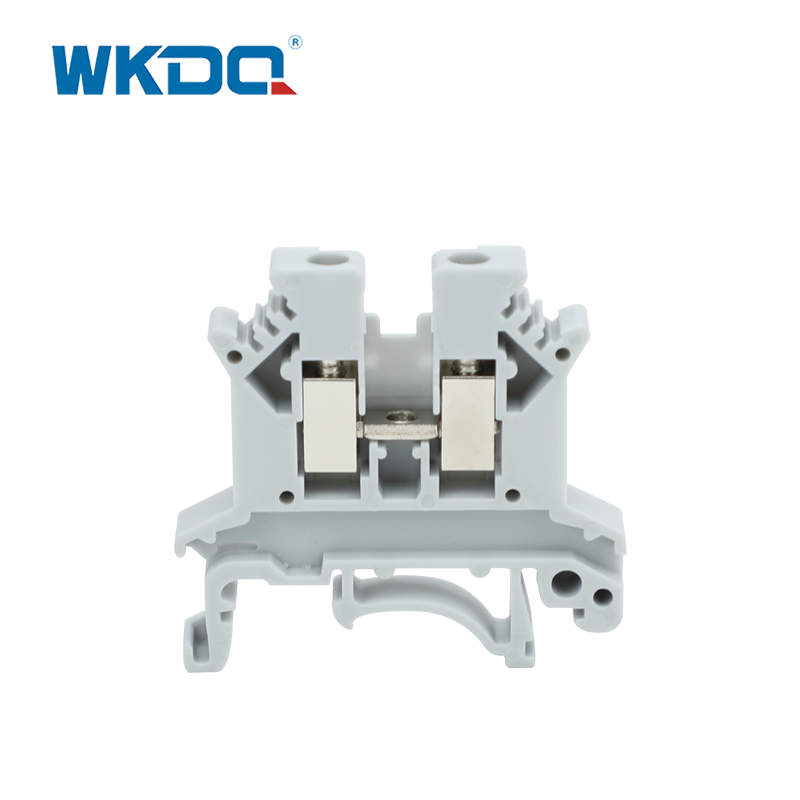

Recently, WKDQ has successfully launched the JUK 2.5 screw-clamped terminal block (model JUK 2.5B). Boasting outstanding performance, wide applicability, and abundant customization options, this product brings a brand-new solution to the field of electrical connections.
This terminal block connector adopts the internationally recognized screw connection method, which meets the most stringent requirements and offers a broad range of applications. It performs excellently even in the wiring of large conductor cross-sections. Constructed from engineering flame-retardant nylon PA66 and brass screws, it not only features excellent flame-retardant properties but also ensures the stability and conductivity of the connection.
In terms of installation, the JUK 2.5B comes with a universal base, allowing for easy installation on Din Rail NS 35 rails, thus providing a convenient and efficient installation process. It can effortlessly connect two conductors. The cross-section of solid cables can reach 0.2-4mm², while that of flexible cables is 0.2-2.5mm². With a conductor size range of 24-12 AWG, a rated voltage of 800V, and a rated current of 32A, it fully meets the demands of various electrical connection scenarios.
For electrical potential distribution, the JUK 2.5B can utilize a fixed bridge at the center of the terminal or an insertable bridge in the clamping space, offering flexibility and efficiency. Additionally, it is equipped with a comprehensive set of accessories, including end covers, end stoppers, partition plates, marker strips, fixed bridges, and insertable bridges, providing users with all-round support during use.
The JUK 2.5 screw-clamped terminal block is available in gray and blue, with other colors customizable to meet the personalized needs of different users. Measuring 42.5/41/6.2mm, the product complies with the IEC 60947-7-1 standard and has obtained multiple certifications such as CE, RoHS, CQC, and ISO 9001, guaranteeing its quality.
Moreover, this product supports custom logos. Regarding packaging details, each piece weighs 6.9g, with 50 pieces per box and 3,000 pieces per carton.
The launch of the WKDQ JUK 2.5 screw-clamped terminal block undoubtedly provides the electrical industry with a high-quality and high-performance connection product. It is believed that it will play a significant role in connecting various electrical equipment and inject new vitality into the development of the industry.Samples can be obtained through the official website of WKDQ (wkdq-electric.com).
